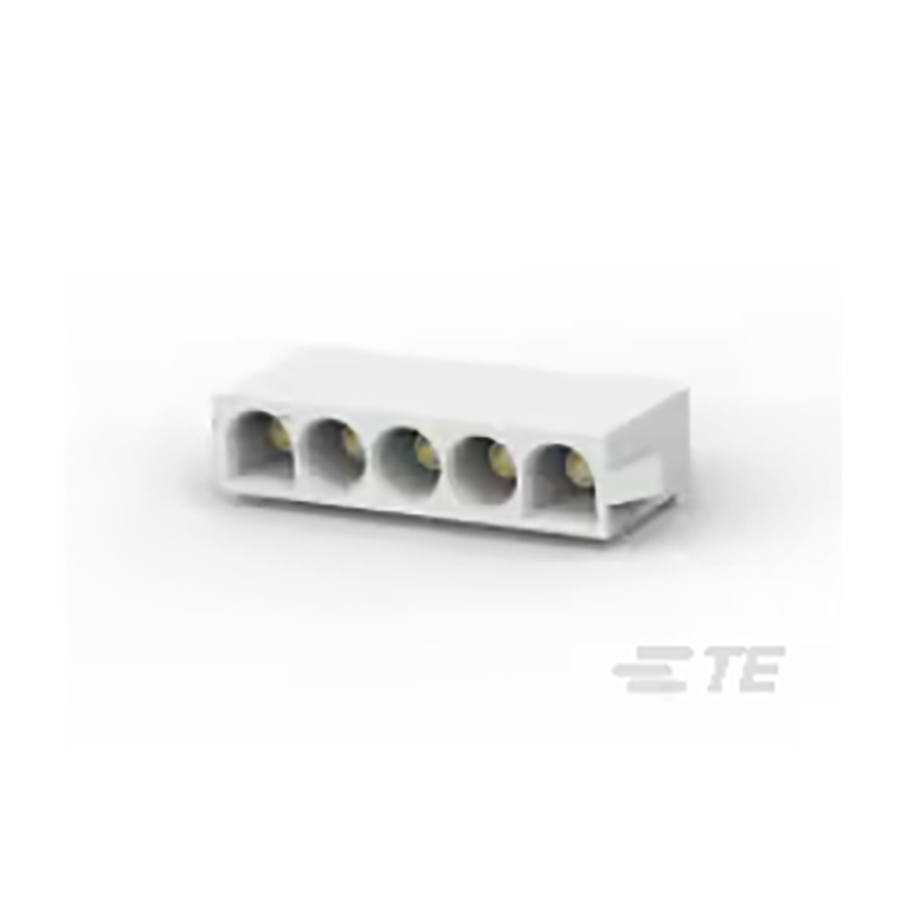

640901-3
Manufacturer:
TE Connectivity
Mfr.Part #:
640901-3
Datasheet:
Description:
Power Connectors Through Hole Current Rating:19 A Voltage Rating:600 V Socket Socket (Female)
| Parameter | Value |
|---|---|
| Length | 33.02 mm |
| Width | 13.97 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 7.62 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Pitch | 6.35 mm |
| Number of Terminals | 5 |
| Current Rating | 19 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 5 |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | White |
| Gender | Socket (Female) |
| Number of Contacts | 5 |
| Connector Type | Socket |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 12 A |
| Housing Color | Natural |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.7526 mm |
| Contact Gender | Female |
| Number of Power Positions | 5 |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 2385
Distributors
pcbx
pcbxUnit Price$2.76528
Ext.Price$2.76528
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.76528 | $2.76528 |
| 10 | $2.34735 | $23.47350 |
| 25 | $2.22344 | $55.58600 |
| 50 | $2.10607 | $105.30350 |
| 100 | $1.99490 | $199.49000 |
| 300 | $1.89078 | $567.23400 |
| 500 | $1.79208 | $896.04000 |
